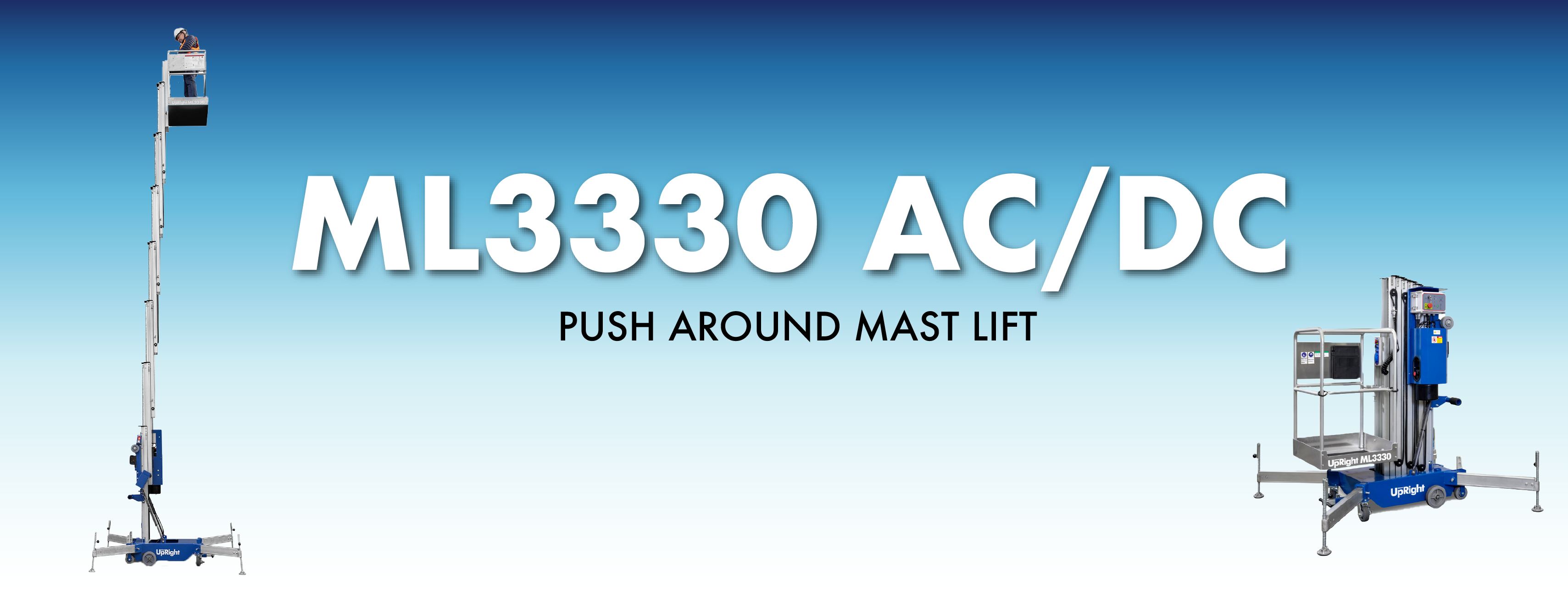

ML3330 AC/DC

Push Around Mast Lift

The ML3330 is a lightweight, simple and easy to operate Push-Around lift that is equipped with everything needed to carry out general maintenance work. Reaching heights up to 12m, it’s non-marking tyres and quiet AC power, make it ideal for indoor applications. Handy forklift pockets make it easy to transport.





Model
ML3330 AC/DC
Working height about 12.0 m
Platform height max (m) 10.0 m
Lift capacity (kg) 159kg
Basket Size 0.69m*0.68m
Width, stowed 0.74m
Height, stowed 1.97m
Height, tilted back --
Length, stowed 1.42
Length, tilted back --
Outrigger footprint 1.99*1.72m
Wall access front/side 0.23/0.55m
Power source AC/DC 220V/110V/12V
Weights AC/DC 365kg/480kg



● Aluminum Platform Basket
● Polyurethane Non-marking tyres
● Leverage Ro-Ro device
● Lifting points and forklift pockets
● Platform and Ground controls
● Safety warning signal and light when the lift is operating
● Emergency Lower Down
● Outrigger Storage Pockets
● AC-Power line from the chassis to the platform

Operation and Maintenance Manual

Spare parts instruction manual
